Crane radio remote controls
A crane remote control lets the operator drive the hoist and travel motions wirelessly from the floor, clear of the load. Our H-series and R-series crane radio remote control range — more channels add motions and auxiliary functions as your crane gets more complex. See the Radio Control Brochure for full specifications, or ask an engineer if you're unsure which suits your hoist or crane.
What is a crane radio remote control?
A crane radio remote control replaces a tethered pendant, letting the operator drive the hoist and travel motions wirelessly and move out from under the load for a clearer view and safer positioning. Each kit pairs a handheld transmitter with a receiver wired to the crane or hoist contactors. The number of channels determines how many motions and auxiliary functions you can control — from a basic up/down and travel set through to multi-speed, twin-hoist and A/B tandem operation.
H-series (remote) vs R-series (receiver)

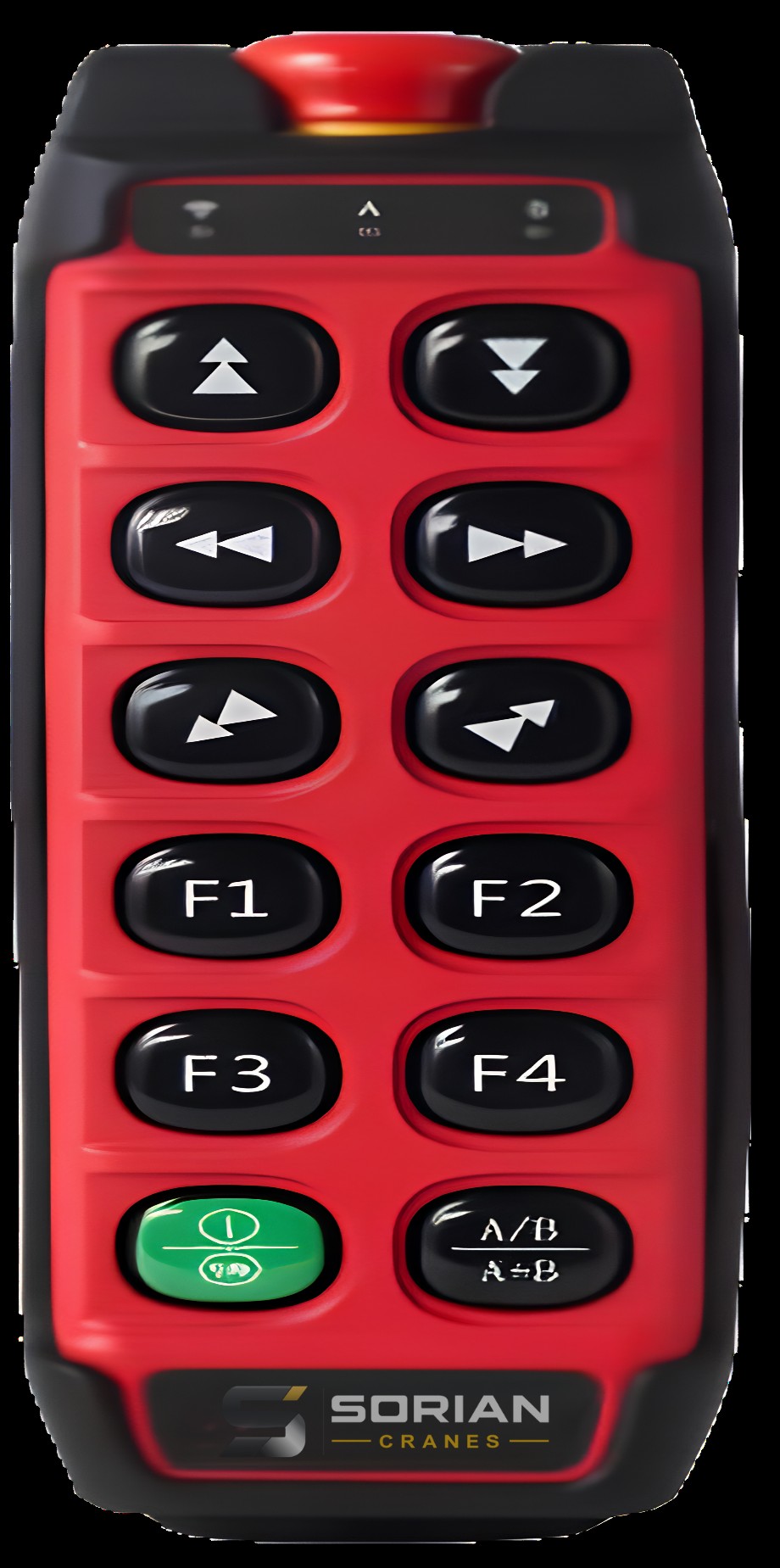

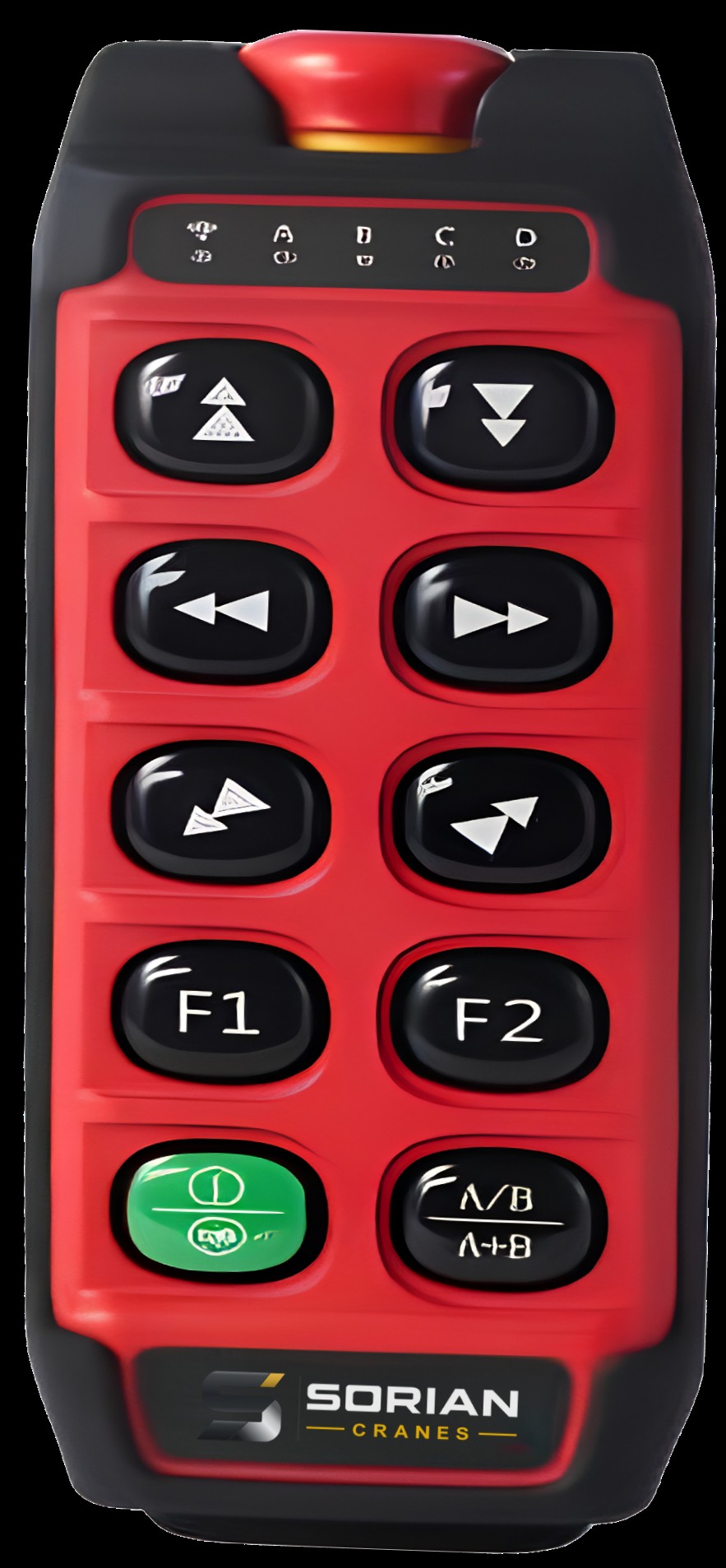

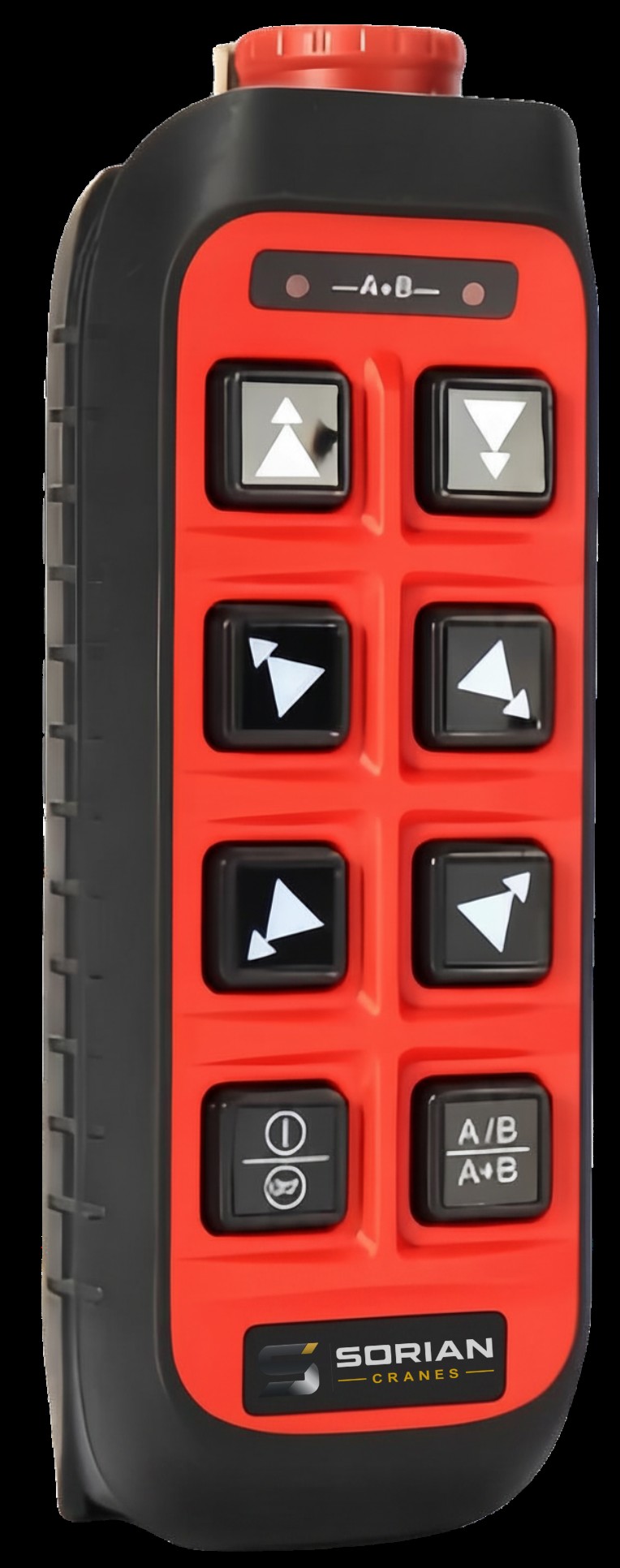

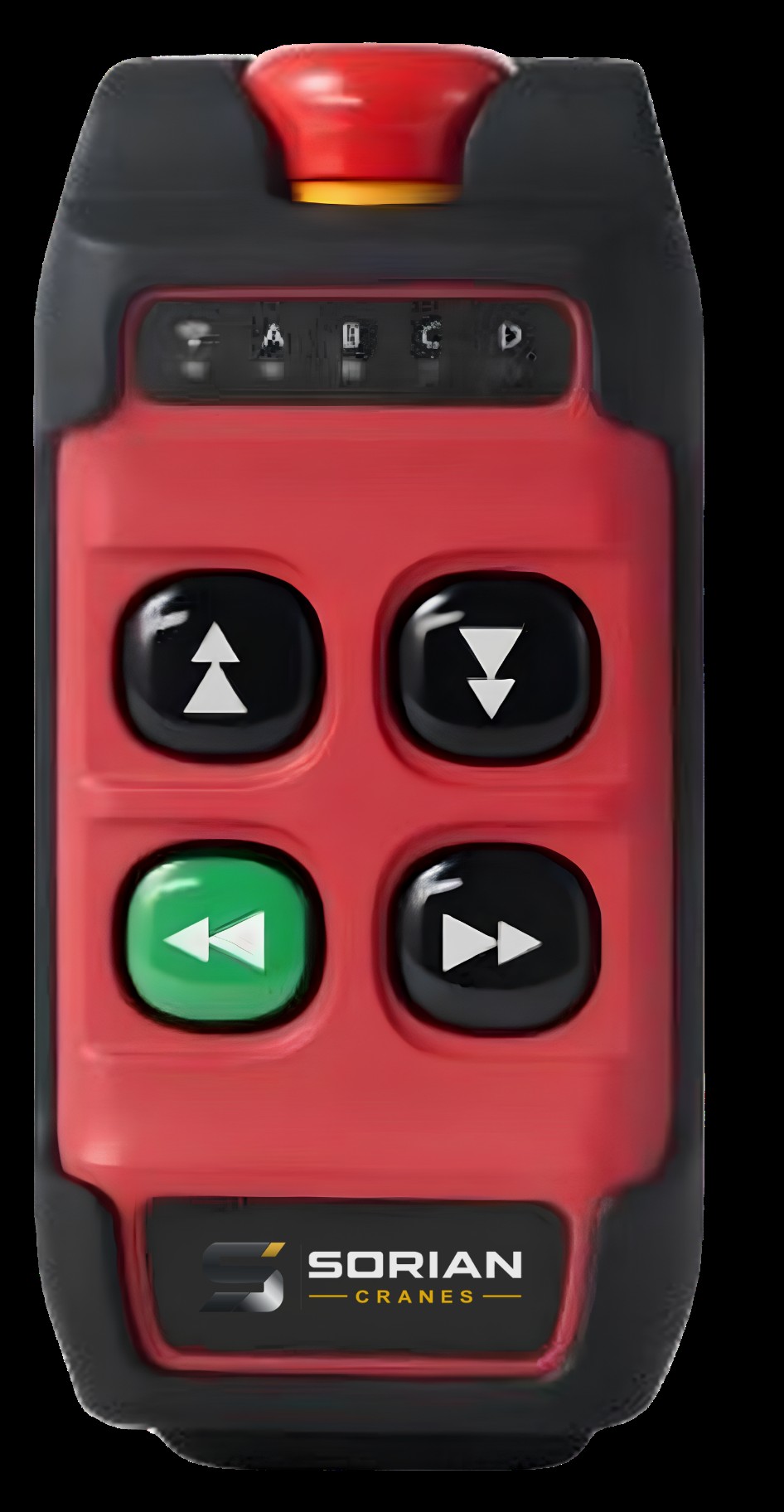

They're the two halves of a radio control system, not competing ranges. The H-series is the remote (transmitter) — the handset the operator holds — and steps up by button count for more motions and functions: H22 (compact) through to the 12-button H52 with A/B selection. The R-series is the receiver — the box mounted on the crane that switches the motions when the remote calls them — in 10-, 15- and 20-channel options (R10, R15, R20). A complete kit pairs an H-series remote with a matched R-series receiver and includes a spare remote; you can also buy a receiver box or a standalone remote on its own as a spare or replacement. Not sure which suits your hoist or crane? Check the Radio Control Brochure or send a parts enquiry and an engineer will confirm the right item before you buy.
Brochures & downloads
Full specifications, functions and wiring details:
- Radio Control Brochure (PDF, 5.1 MB) — the H-series remotes and R-series receivers.
- Light Crane Brochure (PDF, 1.3 MB) — Sorian light crane & workstation systems.
- ZQX Load Limiter Brochure (PDF, 0.5 MB) — ZQX overload / load-limiting protection.
How ordering works
- Add to checkout — each product's buy button opens a secure Stripe checkout for that item.
- Pay by card — payment is processed by Stripe; we never see your card details.
- GST tax invoice — prices include 10% GST and a tax invoice is emailed with your receipt. (Requires your ABN + Stripe Tax or Stripe Invoicing enabled in Stripe — see go-live checklist.)
- We dispatch — depending on the item, parts ship either direct from our supplier (pre-programmed or modified to your requirements) or from our Derrimut VIC facility when stocked locally — on a case-by-case basis.
Shipping & returns
Shipping. We ship Australia-wide by courier/Australia Post. Shipping is calculated at checkout.
Returns. Online purchases are covered by the Australian Consumer Law, and change-of-mind returns may be accepted within 30 days where the item is unused and in original packaging. See our full Returns & Refunds policy, plus our Terms of Use and Quotation T&Cs.
Other crane parts & spares not listed
This store carries fast-moving spares only. For wheels, wire rope, brakes, hooks, slewing bearings, contactors, VSDs and brand-specific components — or if you need an engineer to confirm the right part for your crane — use the full crane spare parts page and send an enquiry. We supply parts compatible with all major crane brands.
Frequently asked questions
Which crane radio remote control do I need?
A complete kit pairs an H-series remote (the handset, by button count — H22 compact up to the 12-button H52) with a matched R-series receiver (the box mounted on the crane, in 10, 15 or 20 channels). More buttons and channels add motions and auxiliary functions as your crane gets more complex; you can also buy a receiver box or a standalone remote on its own. See the Radio Control Brochure, or send a parts enquiry and an engineer will confirm the right item before you buy.
Will a radio remote control fit my crane?
We confirm compatibility before you buy. Send a parts enquiry with your crane or hoist details and an engineer will check the right control before you order.
Are prices GST inclusive?
Yes — all prices include 10% GST, and a tax invoice is emailed with your receipt.
Do you ship Australia-wide?
Yes. We ship Australia-wide by courier or Australia Post, calculated at checkout. Depending on the item, orders ship direct from our supplier (pre-programmed or modified to your requirements) or from our Derrimut VIC facility when stocked locally.
